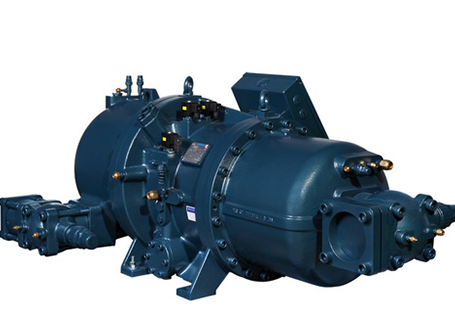

Hanbell RC2-PZ series compressor can be used in high load demand places such as full load air cooling, freezing, refrigeration, ocean fishing, cold chain logistics and ice making system, etc.
HANBELL high-efficient rotor profile with 5:6 gear ratio;
High life bearing provides more stable operation and longer operation time;
The compressor uses low loss silicon steel core, motor cooling channel and refrigerant diversion design that ensure the high efficiency of the motor and long-term stable operation of the motor under harsh conditions;
Based on original protection module INT69, INT69HBY Diagnose is updated with protection for anti-phase and phase-loss, new fault record function, which can protect the compressor more comprehensively;
According to the demand, customer can choose to single machine or multi-machine parallel connection.
Model | Compressor | Motor | Fuel quantity | Oil heater | Strength test (air pressure) | Weight | ||||||||
Discharge volume 50Hz m3/h | Rotation speed 50Hz r/min | Vi | Capacity control (%) | Lubrication | Type | Start model | Voltage (V) 50Hz | Insulation level | Protection | L | W | kg/cm2G | kg | |
RC2-100-A(P)-Z | 98 | 2950 | 3.0 | 33/66/100% | Differential pressure type | 3-phase 2-pole AC asynchronous motor | Y-△ | 380 | Level F | PTC ,Temp sensor and protection module for anti-phase and phase-loss | 7 | 300 | 35 | 275 |
RC2-140-A(P)-Z | 137 | 7 | 280 | |||||||||||
RC2-180-A(P)-Z | 180 | 7 | 320 | |||||||||||
RC2-200-A(P)-Z | 193 | 25% 50% 75% 100% OR 25%(33%)-100% stepless | 8 | 420 | ||||||||||
RC2-230-A(P)-Z | 230 | 14 | 540 | |||||||||||
RC2-260-A(P)-Z | 257 | 14 | 545 | |||||||||||
RC2-300-A(P)-Z | 293 | 16 | 590 | |||||||||||
RC2-310-A(P)-Z | 308 | 14 | 575 | |||||||||||
RC2-340-A(P)-Z | 339 | 16 | 600 | |||||||||||
RC2-370-A(P)-Z | 366 | 16 | 610 | |||||||||||
RC2-410-A(P)-Z | 407 | 15 | 730 | |||||||||||
RC2-470-A(P)-Z | 471 | 18 | 800 | |||||||||||
RC2-510-A(P)-Z | 508 | 20 | 760 | |||||||||||
RC2-550-A(P)-Z | 549 | 23 | 820 | |||||||||||
RC2-580-A(P)-Z | 583 | 20 | 805 | |||||||||||
RC2-620-A(P)-Z | 619 | 23 | 850 | |||||||||||
RC2-710-A(P)-Z | 713 | 23 | 1099 | |||||||||||
RC2-790-A(P)-Z | 791 | 28 | 1140 | |||||||||||
RC2-830-A(P)-Z | 825 | 28 | 1150 | |||||||||||
RC2-930-A(P)-Z | 929 | 28 | 1180 | |||||||||||
Model | Compressor | Motor | Fuel quantity | Oil heater | Strength test (air pressure) | Weight | ||||||||
Discharge volume 50Hz m3/h | Rotation speed 50Hz r/min | Vi valve | Capacity control (%) | Lubrication | Type | Start model | Voltage (V) 50Hz | Insulation level | Protection | L | W | kg/cm2G | kg | |
RC2-100-B(P)-Z | 98 | 2950 | 3.5 | 33/66/100% | Differential pressure type | 3-phase 2-pole AC asynchronous motor | Y-△ | 380 | Level F | PTC ,Temp sensor and protection module for anti-phase and phase-loss | 7 | 300 | 35 | 275 |
RC2-140-B(P)-Z | 137 | 7 | 280 | |||||||||||
RC2-180-B(P)-Z | 180 | 7 | 320 | |||||||||||
RC2-200-B(P)-Z | 193 | 25% 50% 75% 100% OR 25%(33%)-100% stepless | 8 | 420 | ||||||||||
RC2-230-B(P)-Z | 230 | 14 | 540 | |||||||||||
RC2-260-B(P)-Z | 257 | 14 | 545 | |||||||||||
RC2-300-B(P)-Z | 293 | 16 | 590 | |||||||||||
RC2-310-B(P)-Z | 308 | 14 | 575 | |||||||||||
RC2-340-B(P)-Z | 339 | 16 | 600 | |||||||||||
RC2-370-B(P)-Z | 366 | 16 | 610 | |||||||||||
RC2-410-B(P)-Z | 407 | 15 | 730 | |||||||||||
RC2-470-B(P)-Z | 471 | 18 | 800 | |||||||||||
RC2-510-B(P)-Z | 508 | 20 | 760 | |||||||||||
RC2-550-B(P)-Z | 549 | 23 | 820 | |||||||||||
RC2-580-B(P)-Z | 583 | 20 | 805 | |||||||||||
RC2-620-B(P)-Z | 619 | 23 | 850 | |||||||||||
RC2-710-B(P)-Z | 713 | 23 | 1099 | |||||||||||
RC2-790-B(P)-Z | 791 | 28 | 1140 | |||||||||||
RC2-830-B(P)-Z | 825 | 28 | 1150 | |||||||||||
RC2-930-B(P)-Z | 929 | 28 | 1180 | |||||||||||
RC2-1020-B(P)-Z | 1017 | 40 | 1540 | |||||||||||
RC2-1130-B(P)-Z | 1122 | 40 | 1560 | |||||||||||
RC2-1270-B(P)-Z | 1268 | 53 | 2200 | |||||||||||
RC2-1530-B(P)-Z | 1539 | 53 | 2300 | |||||||||||
